Flexible Insulated Tooj Busbars
Flexible Insulated Copper Busbars yog engineering qib hloov tau yooj yim conductive kev sib txuas uas tsim los rau kev lag luam hnyav. Tsis zoo li cov khoom muag sib txuas, cov koob no tau tsim tshwj xeeb los daws cov teeb meem ntawm lub zog xa hluav taws xob hauv qhov ceev tam sim no, qhov nyuaj ntawm qhov chaw, thiab qhov chaw muaj kev ntxhov siab. Cov khoom yog positioned los hloov cov kev txwv ntawm ib txwm nruj busbars nyob rau hauv kev co, thermal cycling, thiab installation yuam kev scenarios, muab fais fab engineers nrog ib tug kev twb kev txuas kev daws teeb meem uas combines hluav taws xob kev ua tau zoo thiab mechanical adaptability.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Flexible Insulated Copper Busbars, tseem hu ua Flexible BusBar, yog cov ntsiab lus tseem ceeb uas cuam tshuam los ntawm cov kev txwv ntawm kev sib kis tsis zoo. Lawv yog tsim los ntawm ntau cov khaubncaws sab nraud povtseg ntawm braid hlau stacked raws li cov qauv tseem ceeb, tsim los ntawm cov txheej txheem tshwj xeeb thiab nruab nrog rwb thaiv tsev tiv thaiv. Lawv muaj qhov ua tau zoo thiab kev ua haujlwm zoo, thiab tuaj yeem ua tiav kev nyab xeeb thiab ruaj khov hluav taws xob xa mus rau hauv kev ua haujlwm nyuaj. Rau cov kws tshaj lij kev yuav khoom thiab cov kws tshaj lij engineering uas ua raws li kev tsim kho vaj tse, txo cov nqi khiav lag luam thiab kev saib xyuas, thiab txhim kho kev ruaj ntseg, cov khoom no tsis yog ib qho kev ua haujlwm siab - zoo rau cov tsoos busbars, tab sis kuj yog ib qho kev txhawb nqa tseem ceeb rau kev txhim kho hluav taws xob tsim hluav taws xob thiab daws teeb meem kev sib kis nyuaj, txhawb kev tsaws thiab kev ua haujlwm zoo ntawm ntau qhov kev lag luam.
cov kev txwv tshwj xeeb
Conductor specifications
Yog tias T2 mos tooj liab strip conductors siv rau Flexible Insulated Copper Busbars, lawv tuaj yeem muab faib ua ob hom: liab qab tooj liab thiab tin plated tooj liab. Cov lus qhia tshwj xeeb ntawm tooj liab strips suav nrog ntau tshaj kaum hom xws li 9X0.8, nrog 2-12 txheej txheej; Lub braided mos kev twb kev txuas siv rau tsheb high-voltage roj teeb pob yog ua los ntawm tooj liab substrate nrog ib tug tin txheej thickness ntawm 0.5-1.0 μ m thiab nyias phaj thickness ntawm 0.25mm ± 0.02.
01
Cov txheej txheem rwb thaiv tsev
Cov txheej rwb thaiv tsev ntawm Copper Braided Flexible Connectors feem ntau yog siv tshwj xeeb PVC thiab cov pa taws tsawg halogen- cov ntaub ntawv TPE dawb, thiab TPE rwb thaiv tsev txheej feem ntau yog dub / txiv kab ntxwv; TPE rwb thaiv tsev sheath yog nyiam rau woven mos sib txuas siv nyob rau hauv tsheb siab -voltage roj teeb pob, thiab 0.15mm tuab mica daim kab xev yog siv thaum hluav taws kub- tiv taus.
02
Cov qauv tsim

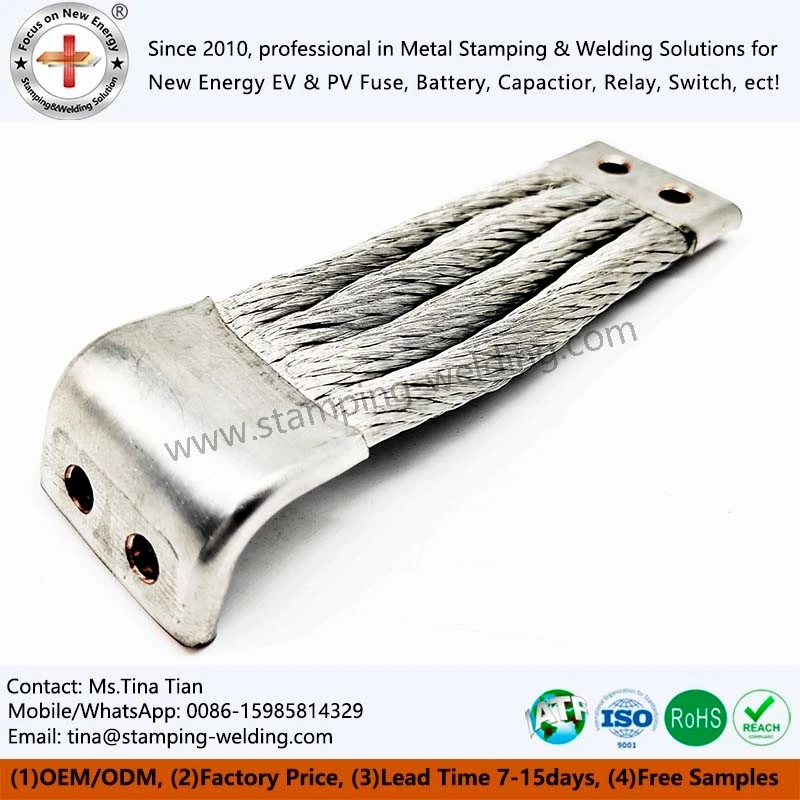

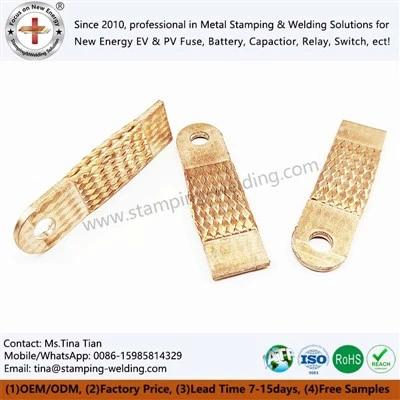

Flexible Braided Custom Connectors tam sim no tsis muaj tus qauv tsim tshwj xeeb thoob ntiaj teb. Tebchaws Asmeskas qiv UL758 cov ntawv pov thawj hluav taws xob xaim hluav taws xob, thaum cov khoom siv hauv tsev feem ntau yog hais txog GB / T5023 insulated cable qauv thiab UL758 hluav taws xob hlau qauv.
03
Lub peev xwm nqa tam sim no

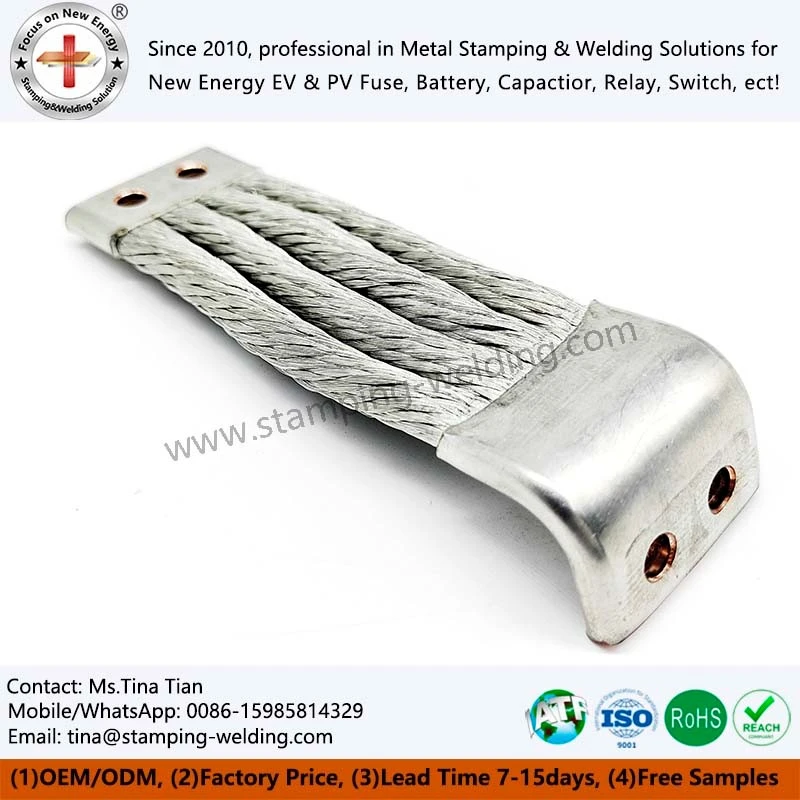

Braided Copper Wire, vim nws cov txheej txheem ntau- cov txheej txheem tiaj tus neeg xyuas pib, raug cuam tshuam los ntawm cov tawv nqaij, ua rau muaj peev xwm nqa tau ntau dua rau tib tus ntoo khaub lig- ntu ntu; Raws li tib lub peev xwm nqa tau tam sim no, piv rau cov kab hluav taws xob zoo tib yam, kev sib txuas yooj yim braided muaj me me hla- ntu, uas tuaj yeem txuag cov ntaub ntawv, txo qhov hnyav, thiab txuag qhov chaw layout.
04
cov ntaub ntawv kev yuav khoom
Yam tsawg kawg nkaus Order Quantity (MOQ)
MOQ 1,000 pcs / khoom, ua los ntawm stamping tuag; Rau cov khoom tsis yog -tus qauv customized, peb txaus siab koom tes nrog koj cov kev tshawb fawb thiab kev tsim kho, thiab MOQ ntawm Braided BusBar tuaj yeem sib tham.
Lub voj voog xa khoom
Lub voj voog xa khoom rau Braided Flexible Busbars Customized samples yog 5-10 hnub. Tso cai, tsim los ntawm laser txiav lossis CNC xuas nrig ntaus tshuab
Lub sij hawm xa tuaj rau kev txiav txim yog 20-30 hnub (rau pwm thiab khoom).
Ntim thiab Logistics
Flexible Connectors siv EPE sab hauv thiab cov duab los qhia / pallet sab nraud los tiv thaiv compression deformation thaum thauj.
Peb Cov Ntawv Pov Thawj
Nyob nruab nrab ntawm lub zog tam sim no ntawm photovoltaic modules thiab lub zog loj ntawm lub zog cia roj teeb, Xiamen Apollo Stamping Welding Technology Co., Ltd. Peb tsis tau tsuas yog tau txais ISO 9001: 2015 daim ntawv pov thawj thoob ntiaj teb (tam sim no thov rau IATF16949 kev lag luam tsheb thoob ntiaj teb daim ntawv pov thawj zoo), tab sis kuj rov txhais qhov kev txiav txim siab thiab kev ntseeg siab ntawm cov khoom siv hluav taws xob tshiab nrog peb lub ntsiab lus patented technologies.
tiv tauj peb
Peb lub tuam txhab tuaj yeem muab cov khoom lag luam kev daws teeb meem thiab txhawb nqa kev sib txuas lus ncaj qha nrog pawg engineering kom ntseeg tau cov khoom lag luam hauv kev siv tswv yim. Txais tos tiv tauj peb.
