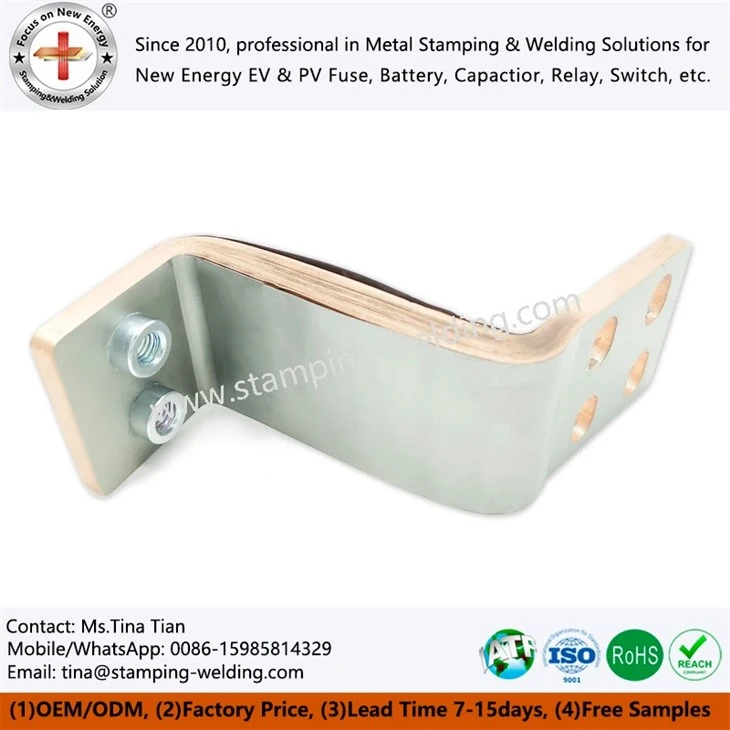

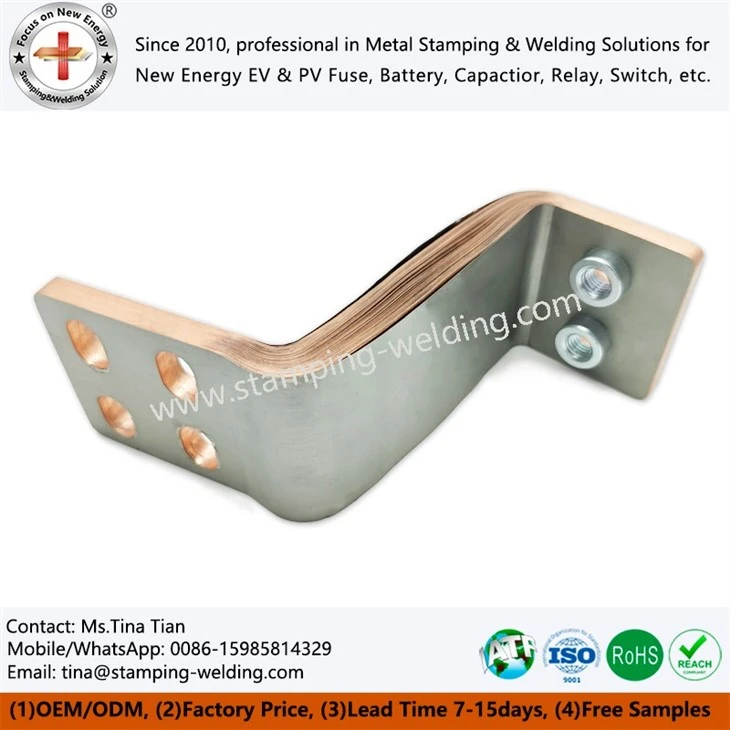

Copper Laminated Foils Connector
Peb Copper laminated foils connector, nrog nws cov txheej txheem tsim ntawm "siab-purity tooj liab foil txheej + insulating txheej + reinforcing nplaum txheej," khaws cov khoom zoo heev ntawm tooj liab thaum muab hloov tau yooj yim. Qhov kev tsim qauv no hais txog cov teeb meem ntawm "rigidity ua installation nyuaj thiab ib qho- txheej txheej tsim ua rau puas tsuaj," ua rau nws zoo tagnrho "kev sib txuas yooj yim" rau cov ntawv thov nyuaj, pab cov neeg siv khoom txo lub sijhawm teeb tsa thiab cov nqi tu, thiab txhim kho kev ntseeg siab ntawm kev sib txuas hluav taws xob hauv lawv cov khoom siv.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Cov tooj liab laminated foils connector sawv cev rau qhov kev sib tw tseem ceeb hauv kev siv hluav taws xob sib txuas, tsim tshwj xeeb rau cov ntawv thov uas yuav tsum tau muaj kev tiv thaiv siab rau kev co, qhov kub thiab txias hloov pauv, thiab kev cia siab ntev ntev -. Qhov Copper Foil Flexible Busbar no muaj cov qauv laminated sib xyaw tshwj xeeb, sib txuas ua ke siab -purity electrolytic tooj liab ntawv ci nrog siab -kev ua tau zoo elastic khoom los ntawm cov txheej txheem tsim khoom. Qhov no ua rau muaj kev sib txuas tshiab daws teeb meem uas muaj cov khoom siv hluav taws xob zoo heev, kev qaug zog zoo dua, thiab cov khoom siv kho tshuab ruaj khov.
Cov Ntsiab Lus Muag
1. Multi- txheej Copper Foil Composite Structure: Qhov Zoo Tshaj Plaws ntawm Kev Siv Hluav Taws Xob thiab Siab Flexibility
Tsis zoo li ib txwm ib txwm-txheej tooj liab busbars lossis cov hlua txuas nrog lawv qhov kev nruj nruj, Multilayer Copper Foils Flexible BusBar ua tiav kev ua kom zoo tshaj plaws ntawm hluav taws xob conductivity thiab mechanical elasticity los ntawm alternating layering ntawm ultra-thin copper foil (single 2 mm) sib npaug li 2. thiab hloov tau cov ntaub ntawv insulating.
High Conductivity: Siv 99.9% siab-purity Copper Flexible BusBar, ntau- txheej txheej thaum ua ke nce tam sim no- nqa lub peev xwm ntau dua 30% (nrog tib tus ntoo khaub lig- ntu ntu), txo qhov kub thiab txias thaum lub sij hawm kis tau tus mob tam sim no thiab tiv thaiv kev ua haujlwm tsis zoo.
High Flexibility: Cov qauv sib xyaw tso cai rau lub vojvoog dabtsi yog khoov mus txog 10 npaug ntawm cov ntawv ci tooj liab tuab (piv txwv li, 0.1mm tuab connector muaj qhov tsawg kawg nkaus dabtsi yog khoov vojvoog ntawm 1mm), ua kom yooj yim peb- qhov txuas txuas kom tau raws li cov qauv tsim qauv thiab daws cov teeb meem kev ntxhov siab ntawm cov tsoos nruj.
2. Integrated Composite Moulding Txheej Txheem: Cov qauv ruaj khov thiab kev tiv thaiv zoo tshaj
Cov Xovxwm-welded Flexible Copper Connection siv ib qho kev sib koom ua ke kub- nias thiab precision txheej txheej txheem, kom tsis muaj npuas los yog delamination ntawm tooj liab Laminated Foil Busbar thiab rwb thaiv tsev txheej, uas ua rau ib tug tuab composite qauv uas fundamentally tshem tawm cov kev pheej hmoo ntawm kev sib txuas tsis zoo los yog delamination.
Structural Stability: Lub zog sib txuas ntawm cov ntawv ci tooj liab thiab cov txheej rwb thaiv tsev yog ntau dua lossis sib npaug li 8N / mm, tsis muaj kev tawg lossis kev hloov pauv tom qab 100,000 dabtsi yog khoov kev sim, muaj peev xwm ua kom ntev ntev - lub sij hawm kev ntxhov siab (xws li, dynamic loads ntawm cov roj teeb pob hauv lub zog tshiab ntawm txoj kev tawg).
Environmental Resistance: Cov khoom siv rwb thaiv tsev sab nrauv siv siab -kub resistant polyimide (200℃ntev-lub sij hawm kub tsis kam) los yog nplaim hluav taws- retardant PET (UL 94 V-0 qib), muab cov dej noo, ntsev tsuag, thiab tshuaj tiv thaiv corrosion, ua haujlwm ruaj khov nyob rau hauv huab cua puag ncig ntawm -40℃automotive thiab 1.
Daim ntawv thov Scenario
| Fais fab roj teeb Modules thiab Energy Storage Systems | Siv rau inter-cell lossis inter-module kev sib txuas hauv pob roj teeb. Cov qauv tsim hloov tau haum rau lub roj teeb nthuav dav, thiab cov qauv laminated kom ruaj khov siab - tam sim no kis tau tus mob. |
| Fais Tsheb Tsav Tsav Tsheb (MCU) | Txuas IGBT modules rau DC tsheb npav, tiv taus siab - zaus PWM tam sim no thiab thermal cycling. Tsawg inductance tsim txo EMI thiab txhim kho kev ua haujlwm zoo. |
| Photovoltaic Inverters thiab Fais Fab Hloov Tshuab (PCS) | Muab qhov qis- tsis sib xws ntawm cov khoom siv hluav taws xob, ua kom muaj zog hloov pauv tau zoo thiab ua raws li cov qauv kev nyab xeeb. |
| Rail Tsheb thauj mus los Traction Systems | Siv nyob rau hauv siab - vibration ib puag ncig xws li traction inverters thiab auxiliary power supplys. CovCopper Foil Bus Bartau dhau qhov kev co thiab cov kev ntsuam xyuas cuam tshuam los xyuas kom meej - lub sijhawm ua haujlwm ruaj khov. |
| Muaj UPS thiab siab - Cov Khoom Siv Hluav Taws Xob | Muab kev sib txuas zoo ntawm rectifiers thiab inverter modules, txo qhov kub thiab txias thiab txhim kho cov cuab yeej kev ntseeg siab thiab kev ua neej. |
Cov lus nug nquag
Koj daim ntawv pov thawj yog dab tsi?
+
-
Peb muaj IS09001, lATF 16949 daim ntawv pov thawj, RoHS, thiab ncav cuag
Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
+
-
Yog, peb muaj 100% kuaj ua ntej xa khoom.
Koj cov ntsiab lus ntawm kev them nyiaj yog dab tsi?
+
-
Feem ntau, peb txais nyiaj hauv tuam txhab T / T, irrevocable L / C thaum pom., Rau kev txiav txim tsis tu ncua, peb nyiam 30% ua ntej .70% tshuav nyiaj li cas ua ntej xa zaub mov.
Koj puas kam txais OEM?
+
-
Yog lawm. Txhua qhov ntau thiab tsawg tuaj yeem hloov kho. Lub logo tuaj yeem ua raws li koj thov
Koj puas tuaj yeem muab cov qauv?
+
-
Yog lawm, tab sis tus nqi coj mus kuaj thiab kev thauj khoom yuav raug them los ntawm koj lub tuam txhab.
