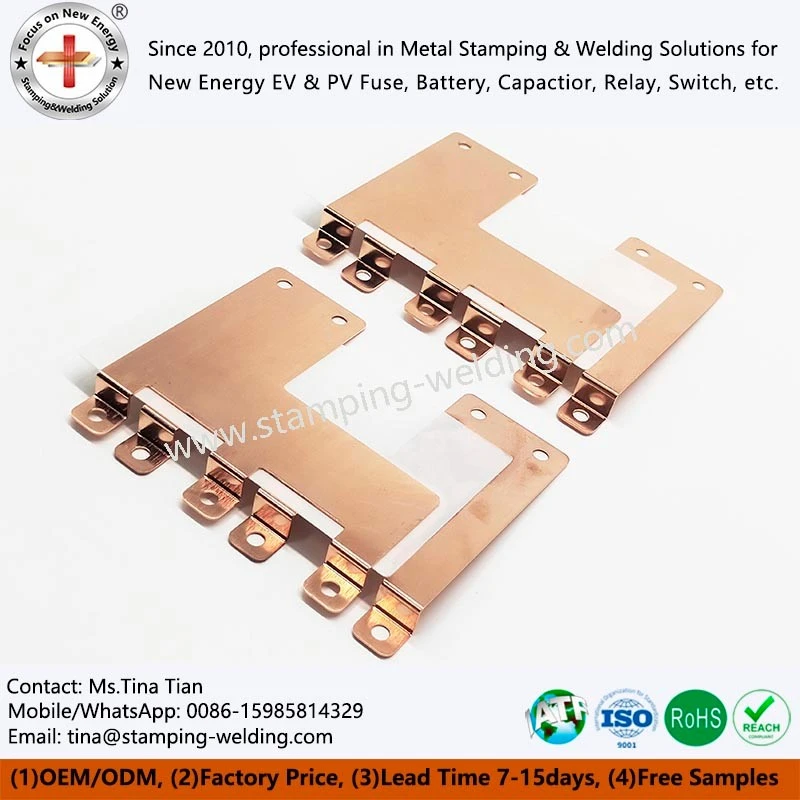

Laminated Bus Bar Rau Spacecraft Fais Fab Inverter



Laminated BusBar rau Spacecraft Fais Fab Inverter yog lub siab -kev ua haujlwm hluav taws xob sib cuam tshuam raws li cov qauv khoom siv thoob ntiaj teb thiab ntau- txheej txheej txheej tshuab, tshwj xeeb tsim los rau siab - daim ntawv thov fais fab hauv lub zog tshiab thiab kev lag luam automation. Siv GB / DIN / EN / ISO / JIS / BS / UNS cov ntaub ntawv pov thawj thoob ntiaj teb, ua ke nrog kev ua haujlwm zoo thiab cov txheej txheem rwb thaiv tsev, Laminated BusBar rau Kev Lag Luam ua tiav qhov kev ua tau zoo tshaj plaws nrog ultra-tsis kam (tsawg dua lossis sib npaug rau 0.00001Ω), load voltage (3500-50002010V) tam sim no-tam sim no (3500-500010VDC).



Nyob rau hauv daim ntawv thov xws li lub zog tshiab lub tsheb roj teeb packs, photovoltaic zog cia systems, thiab rail transit power networks, laminated busbars txo qhov chaw installation los ntawm 40% thiab txhim kho system efficiency los ntawm 3% -8%, ua ib tug benchmark nyob rau hauv lub hwj chim kis tau tus mob technology.



1. Kev xaiv cov khoom siv: Cov ntawv pov thawj thoob ntiaj teb



Copper Systems rau BusBar rau fais fab Electronics

Cov qauv: GB/T2Y2, DIN E-Cu58 (2.0065), EN Cu-ETP (CW004A), ISO Cu-ETP, UNS C11000, JIS C1100, BS C101

Key Parameters: Purity >=99.99% ideal for high-frequency performance in BusBar for Power Electronics, Conductivity >=97% IACS, Hardness 80- 110HV, Tensile Strength 245- 345MPa.



Aluminium Systems

Standards: GB 1060, DIN EN AW-1050 (3.0267), EN Al 99.5, ISO Al 99.5, UNS 1100, JIS A1050, BS 1050

Cov Ntsiab Lus Tseem Ceeb: Purity Ntau dua lossis sib npaug rau 99.5%, Kev coj ua tau zoo dua lossis sib npaug li 55% IACS ua tau raws li qhov xav tau ntawm lub dav hlau lub teeb rau Laminated BusBar rau Spacecraft Fais Fab Inverter, Hardness 40- 60HV, Tensile Strength 120- 170MPa

Customization: Txhawb hybrid cov ntaub ntawv xws li tooj liab-aluminium alloys, enabling topology-optimized BusBar customized rau hluav taws xob tiv thaiv daws teeb meem thiab nqi optimization.



2. Kev Kho Hniav: Micron-Level Precision Enhancement



Plating Technologies

Silver Plating: Ua kom muaj kev sib cuag los ntawm 15%, tiv thaiv kev tiv thaiv tsawg dua lossis sib npaug rau 2μΩ·cm² (zoo tagnrho rau siab - zaus / siab- tam sim no scenarios).

Tin Plating: Txhim kho cov khoom siv los ntawm 30%, ua raws li IPC-J-STD-001 tus qauv.

Nickel Plating: Salt spray resistance >1000 teev (ASTM B117).



Txheej txheem tswj

Adjustable plating thickness (3-12μm), txhawb gradient designs (xws li, 15μm ntawm terminals).

Ultrasonic tu kom huv si saum npoo mus txog NAS 1638 Chav Kawm 6.



1. Kev ua haujlwm hluav taws xob

Ultra- Tsis tshua muaj siab: DC tsis kam Tsawg dua lossis sib npaug rau 0.00001Ω (@20℃), 50% qis dua cov kab tooj liab.

Siab -Frequency Adaptability: AC kuj nce<15% at 100 kHz.

Rwb thaiv tsev zog: Interlayer withstand voltage 5000VDC (UL 60950) rauLaminated BusBar rau Mersen.



2. Mechanical Reliability

Vibration Resistance: Hla IEC 61373 Chav Kawm 1 (5-150Hz / 30g).

Thermal Cycling: -45℃~ 150℃rau 5000 cycles, kuj variation<2%.



3. Environmental Adaptability

Chemical Resistance: Hla 85℃/ 85% RH 2000-teev kuaj.

Nplaim Retardancy: UL94 V-0 ua raws (kev tua tus kheej<10 seconds).



4. Kev sib tw zoo

Cov ntaub ntawv pov thawj thoob ntiaj teb: Ua raws li IEC 60028, ASTM B152, UL, CSA, thiab VDE.

Muaj Peev Xwm Ntau Lawm: 50 lab units / hli, kuaj hauv 10-20 hnub, xaj ntau hauv 7-10 hnub.

System-Txuag Theem Nqi: Txo cov khoom sib txuas los ntawm 30%, txuag 1200 kWh / xyoo (1000A system).

Tag nrho -Scenario Adaptability: Txhawb 0.5mm ultra- txheej nyias, khoov vojvoog mus rau 3D.

Zero-Kev Tswj Xyuas Qhov Zoo: ICP tsom xam, AOI tshuaj xyuas (0.01mm² precision), 100% Hi-Kev ntsuas lub lauj kaub.

Green Supply Chain: 95% cov khoom siv rov ua dua tshiab, 40% qis zog siv dua li lwm yamLaminated Copper BusBar.
