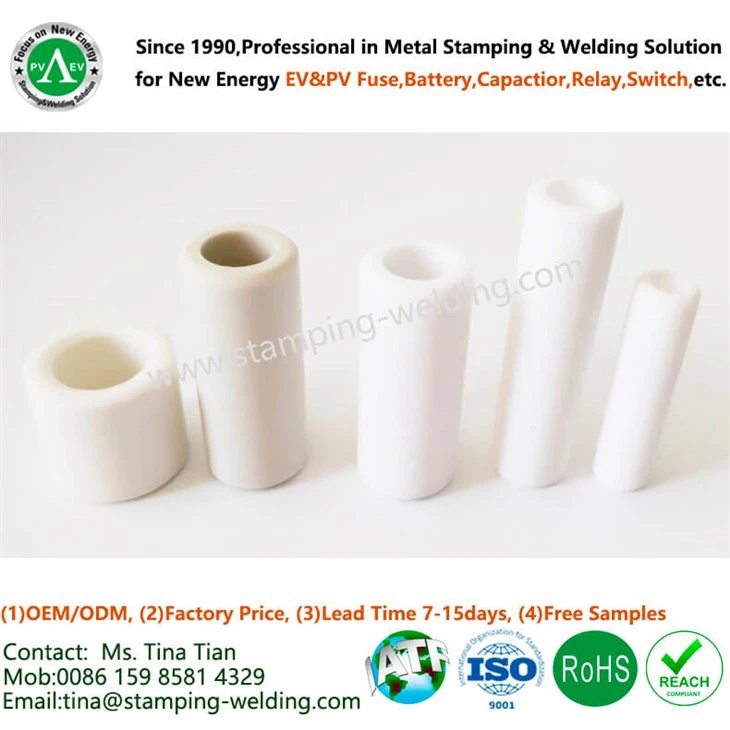

Cylindrical Ceramic Lub Cev Rau Cov Khoom Siv Hluav Taws Xob Tsawg

1-Cov khoom npe: Cylindrical Ceramic lub cev rau cov khoom siv hluav taws xob tsawg
2-Model No: WSAT-CERAMIC-23050401

3-Ceramic Parameters:
(3.1) Cov khoom siv yeem: C221, C610, C620, Alumina (Al2O3, 75 feem pua ​​-99.9%), Steatite, Cordierite, Mulite, thiab lwm yam.
(3.2) Purity Material: Ntau yam ntawm 40 feem pua ​​​​rau 99 feem pua
(3.3) Ceramic ntom: Tshaj 3.65g / cm3
(3.4) Compressive zog: 2000-2500 Mpa
(3.5) Ua Haujlwm Kub: 1500-1800 degree
(3.6) Ceramic Xim: Dawb, Ivory, liab dawb, dub
(3.7) Ceramic Shape: Hloov, square, oval, ib nrab raj
(3.8) Precision Tolerance: Od to ​​be plus /-0.05, ID to be plus /-0.10mm
(3.9) Kev kho deg: polished, glazed muaj
(3.9.1) Txoj kev tsim: Extrusion, ISO nias, qhuav nias
(3.9.2)-Secondary Processing: Fine sib tsoo, threaded

4-Ceramic yam ntxwv:
(4.1) Kub kub stability
(4.2) Tsawg coefficient ntawm thermal expansion
(4.3) Lub zog txhua yam
(4.4) Kev rwb thaiv tsev zoo
(4.5) High purity thiab corrosion kuj

5-Fuse Ceramic Applications:
Peb Fuse Ceramic Lub Cev yog tsim rau lub zog tshiab lub tsheb fuses, photovoltaic fuses, lub zog cia fuses, tsis tshua muaj hluav taws xob fuses (NH00C, NH00, NH1, NH2, NH3), lub zog siab voltage fuses, thiab lwm yam. Fuse Ceramic Bodies Standards yog ISO/IEC/BS, thiab lwm yam.

6-Customized Logo: MOQ 10, 000pcs / khoom
7-Cov Qauv Dawb: 1-10pcs tso cai
8- Sijhawm Lead: Orders 7-10days, Samples 20-25days
9-Exporting Packing: Pearl paj rwb tiv thaiv sab hauv, thawv / pallet sab nraum
10-Cov ntawv pov thawj: ISO9001, IATF16949, RoHS, REACH, thiab lwm yam.
11- Peev Xwm Ntau Lawm: 10, 000, 000 pcs / hli

Lub cev cylindrical ceramic tuaj yeem yog ib qho tseem ceeb rau cov khoom siv hluav taws xob tsawg vim nws cov khoom insulating thiab muaj peev xwm tiv taus qhov kub thiab txias. Cov khoom siv ceramic yog non-conductive, uas txhais tau hais tias nws tuaj yeem tiv thaiv hluav taws xob tam sim no los ntawm nws. Tsis tas li ntawd, ceramic yog cov khoom siv ruaj khov uas tuaj yeem tiv taus qhov kub thiab txias yam tsis muaj melting lossis deforming.

Txhawm rau ua lub cev cylindrical ceramic rau cov khoom siv hluav taws xob tsawg, thawj kauj ruam yog xaiv cov khoom siv ceramic uas tsim nyog. Cov ntaub ntawv ceramic feem ntau siv rau hluav taws xob rwb thaiv tsev muaj xws li alumina, steatite, thiab zirconia. Txhua yam khoom muaj cov khoom sib txawv uas ua rau nws tsim nyog rau cov kev siv tshwj xeeb, yog li nws yog ib qho tseem ceeb uas yuav tau xaiv cov khoom siv uas haum rau cov khoom siv.

Thaum cov khoom siv ceramic tau raug xaiv, cov kauj ruam tom ntej yog los ua lub cev cylindrical. Qhov no tuaj yeem ua tiav siv ntau txoj hauv kev, suav nrog molding, extrusion, thiab machining. Txoj kev siv tshwj xeeb yuav nyob ntawm qhov loj thiab qhov nyuaj ntawm lub cev.

Tom qab lub cev tau ua tiav lawm, nws yuav tsum tau coated los yog glazed los txhim kho nws cov rwb thaiv tsev los yog ua kom nws zoo nkauj dua. Qhov no tuaj yeem ua tiav siv ntau hom kev siv, suav nrog tshuaj tsuag, dipping, lossis electroplating.

Thaum kawg, lub cev cylindrical ceramic tuaj yeem muab tso rau hauv cov khoom siv hluav taws xob tsawg. Nws tuaj yeem siv los thaiv cov xaim hluav taws xob lossis lwm yam khoom siv hluav taws xob, lossis nws tuaj yeem ua cov khoom siv los txhawb lwm qhov ntawm cov khoom siv.

Zuag qhia tag nrho, lub cev cylindrical ceramic tuaj yeem yog qhov tseem ceeb rau cov khoom siv hluav taws xob tsawg vim nws cov khoom siv hluav taws xob thiab kev ua haujlwm ntev. Nrog rau kev xaiv zoo ntawm cov ntaub ntawv thiab cov txheej txheem tsim khoom, nws tuaj yeem ua tau zoo thiab muaj txiaj ntsig zoo rau ntau yam kev siv.
