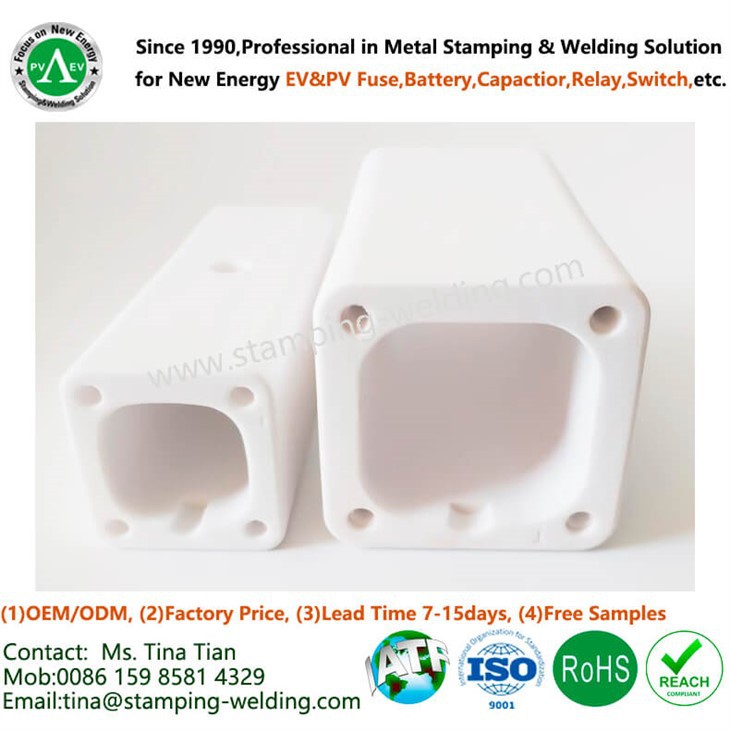

Ceramic Lub Cev Rau Lub Zog Cia Fuse

1-Cov khoom npe: Ceramic Lub Cev rau Lub Zog Cia Fuse
2-Model No: WSAT-CERAMIC-23050417

3-Ceramic Parameters:
(3.1) Cov khoom siv yeem: C221, C610, C620, Alumina (Al2O3, 75 feem pua ​​-99.9%), Steatite, Cordierite, Mulite, thiab lwm yam.
(3.2) Purity Material: Ntau yam ntawm 40 feem pua ​​​​rau 99 feem pua
(3.3) Ceramic ntom: Tshaj 3.65g / cm3
(3.4) Compressive zog: 2000-2500 Mpa
(3.5) Ua Haujlwm Kub: 1500-1800 degree
(3.6) Ceramic Xim: Dawb, Ivory, liab dawb, dub
(3.7) Ceramic Shape: Hloov, square, oval, ib nrab raj
(3.8) Precision Tolerance: Od to ​​be plus /-0.05, ID to be plus /-0.10mm
(3.9) Kev kho deg: polished, glazed muaj
(3.9.1) Txoj Kev Tsim: Extrusion, ISO nias, qhuav nias
(3.9.2)-Secondary Processing: Fine sib tsoo, threaded

4-Ceramic yam ntxwv:
(4.1) Kub kub stability
(4.2) Tsawg coefficient ntawm thermal expansion
(4.3) Lub zog txhua yam
(4.4) Kev rwb thaiv tsev zoo
(4.5) High purity thiab corrosion kuj

5-Fuse Ceramic' Daim Ntawv Thov:
Peb Fuse Ceramic Lub Cev yog tsim rau lub zog tshiab lub tsheb fuses, photovoltaic fuses, lub zog cia fuses, tsis tshua muaj hluav taws xob fuses (NH00C, NH00, NH1, NH2, NH3), lub zog hluav taws xob siab, etc.Fuse Ceramic Lub Cev Cov Qauv yog ISO / IEC / BS, thiab lwm yam.

6-Customized Logo: MOQ 10, 000pcs / khoom
7-Cov Qauv Dawb: 1-10pcs tso cai
8- Sijhawm Lead: Orders 7-10days, Samples 20-25days
9-Exporting Packing: Pearl paj rwb tiv thaiv sab hauv, thawv / pallet sab nraum
10-Cov ntawv pov thawj: ISO9001, IATF16949, RoHS, REACH, thiab lwm yam.
11- Peev Xwm Ntau Lawm: 10, 000, 000 pcs / hli

Ceramic lub cev tuaj yeem siv los npog lub zog cia fuses, muab kev tiv thaiv zoo dua thiab kav ntev. Lub zog cia cov tshuab yuav tsum tau fuses los tiv thaiv overcurrent thiab luv-circuit tej yam kev mob, thiab ceramic lub cev muaj peev xwm muab zoo heev thermal, hluav taws xob, thiab mechanical zog rau lub hom phiaj no.

Ceramic lub cev rau lub zog cia fuses yuav tsum muaj peev xwm tiv taus qhov kub thiab txias thiab mechanical thiab hluav taws xob stresses. Cov khoom siv ceramic siv hauv lub cev yuav tsum tuaj yeem tiv taus cov cua sov uas tsim los ntawm lub zog cia, nrog rau cov cua sov uas tsim los ntawm cov fuses lawv tus kheej thaum lub sijhawm ua haujlwm ib txwm ua thiab thaum lub sijhawm ua haujlwm tsis raug.

Tsis tas li ntawd, lub cev ceramic yuav tsum muab hluav taws xob rwb thaiv tsev ntawm lub fuse thiab cov khoom nyob ib puag ncig thiab yuav tsum muaj peev xwm tiv taus hluav taws xob siab. Cov khoom siv ceramic siv kuj yuav tsum muaj cov coefficient tsawg ntawm thermal expansion los tiv thaiv kev tawg thiab yuav tsum muaj tshuaj ruaj khov los tiv thaiv corrosion los ntawm ib puag ncig.

Feem ntau siv cov ntaub ntawv ceramic rau lub zog cia fuse casings suav nrog alumina (Al2O3), zirconia, thiab silicon carbide. Alumina feem ntau nyiam rau nws cov khoom siv zoo heev, thermal stability, thiab hluav taws xob rwb thaiv tsev.

Ceramic lub cev rau lub zog cia fuses tuaj yeem hloov kho kom tau raws li cov ntawv thov tshwj xeeb, xws li qhov ntev ntev, qhov ua tiav, thiab thermal conductivity. Lawv kuj tuaj yeem tsim los ua ke nrog cov yam ntxwv xws li lub qhov txuas, cov kab rau cov kua dej txias, lossis cov txheej txheem tshwj xeeb los txhim kho lawv cov kev ua tau zoo.

Zuag qhia tag nrho, ceramic lub cev muab cov tshuaj txhim khu kev qha thiab ruaj khov rau kev tiv thaiv lub zog cia fuses, ua kom muaj kev nyab xeeb thiab ua haujlwm zoo ntawm lub zog cia.

Xiamen Apollo Stamping Vuam Technology Co., Ltd
Apollo Electronic Cheebtsam (Xiamen) Co., Ltd
Ntxiv: No.2, Chengyi North Road, Jimei District, Xiamen City, Fujian Province, Suav teb, 361022
Hu rau Inf: Ms.Tina Tian (Sales Manager & Technical Engineer)
Mob/Wechat/Whatsapp: plus 86-159 8581 4329
Email: tina@stamping-welding.com
Web: www.stamping-welding.com , www.china-electronic-components.com

Txij li xyoo 2010, kev tshaj lij hauv EV & PV Fuses Hu rau & Cap, EV BusBar, Lub Zog Tshiab Lithium Roj Teeb Txhuas Case, thiab lwm yam Hlau Stamping & Vuam daws.
