Brass End Caps
High Conductivity Brass Material: Engineered siv H62/H65/H68 tooj dag alloys, xa optimized hluav taws xob conductivity thiab structural zog rau siab -tam sim no tiv thaiv systems.
Precision Stamping & Deep Drawing: Tswj los ntawm kev vam meej tuag nrog stamping tolerances nyob rau hauv ± 0.01mm, kom ntseeg tau tias cov phab ntsa tuab nyob rau txhua txhua sab hauv kawg cap thiab plhaub.
Low Contact Resistance Plating: Multi-txheej Ni, Sn, lossis Ag nto tiav tiv thaiv oxidation, txo qis thermal buildup thiab tiv thaiv kev ua haujlwm ntev.
Integrated Assembly Solderability: Optimized cov khoom muaj pes tsawg leeg thiab huv si saum npoo kev kho mob tso cai tas mus li, void - dawb soldering rau fuse lub cev thiab conductive terminals.
Kev hloov kho sai sai OEM/ODM: Hauv- kev txhim kho cov cuab yeej hauv tsev ua rau muaj kev tsim qauv sai sai los ntawm STEP / DWG cov ntaub ntawv hauv 7 txog 10 hnub rau siab -voltage tiv thaiv tej yaam num.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Nyob rau hauv siab -voltage EV tiv thaiv systems thiab industrial circuit tiv thaiv modules, thermal stability thiab zoo ib yam tam sim no conduction nyob ntawm qhov tseeb kawg -cap interfaces. Lub siab -Zoo kawg Brass End Caps yuav tsum muaj kev ntseeg ruaj khov nyob rau hauv qhov kub thiab txias mus rau qhov tsis muaj kev tiv thaiv tag nrho. Raws li cov chaw tsim khoom tshwj xeeb hauv siab- cov hlau stamping precision, peb muab cov khoom siv tooj dag kawg, cov raj tooj liab lub hau xaiv, thiab cov qauv hauv lub hau kawg uas tau tsim tshwj xeeb rau kev sib txuas hluav taws xob txhim khu kev qha thiab cov khoom vaj khoom tsev.
Technical Specifications & Material Standards
| Base Material Qib | H62 / H65 / H68 tooj dag |
| Hluav taws xob conductivity | Ntau dua lossis sib npaug rau 25% IACS (Standard Brass) / Customized Copper-Brass Alloys |
| Kev xaiv plating | Flash / Bright Tin (Sn: 3-8 μm), Nickel (Ni: 2-5 μm), Nyiaj (Ag: 2-5 μm) |
| Tiv tauj Resistance | Tsawg dua lossis sib npaug li 0.8 mΩ |
| Tensile zog | 350-480 MPa |

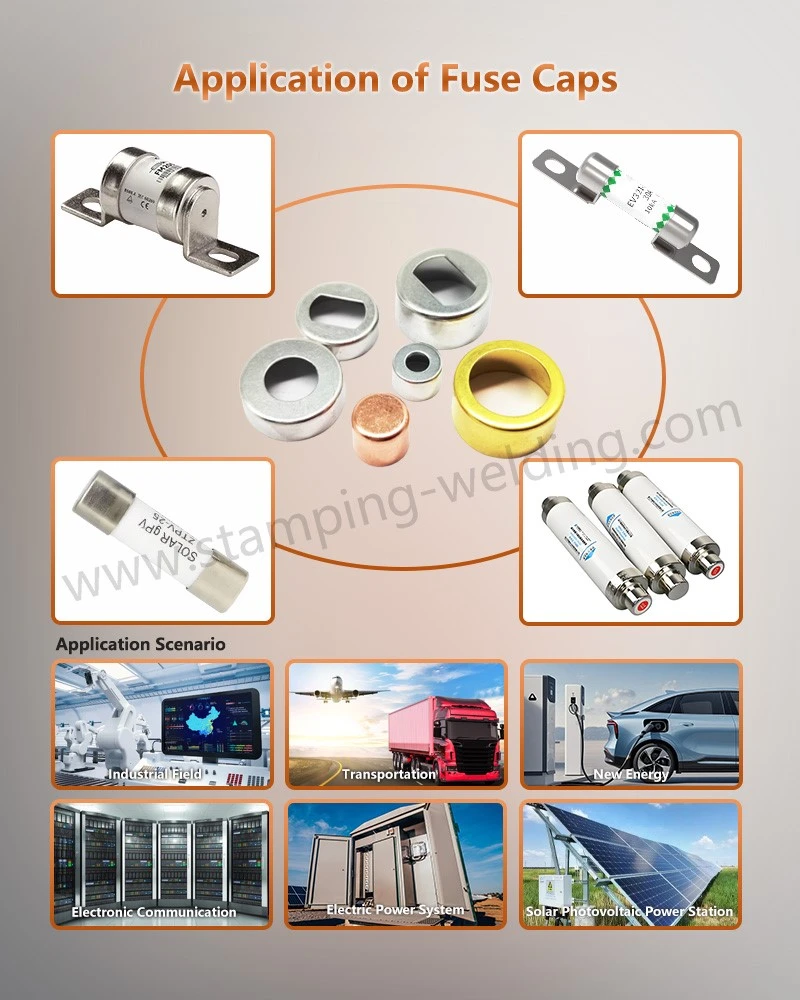

Daim ntawv thov Scenario & Kev lag luam kev koom ua ke
New Energy Vehicles (EV/HEV)
Siv nyob rau hauv BMS, OBC, thiab MCU siab -voltage fuses los tswj cov surges tam sim no thiab hluav taws xob hloov pauv rau Brass Terminal Cap.
Smart Grid & Fais Fab Kev faib tawm
Deployed nyob rau hauv substations, tis lub thawv, thiab kab sib chaws cov khoom siv ceev faj teb thiab arc suppression rau tooj dag Pipe End Cap.
Aerospace & Kws muaj txuj ci Avionics
Ua rau lub zog satellite thiab dav hlau avionics fuses kom tiv taus huab cua kub thiab hluav taws xob tooj dag Tube End Cap.
High-End Electronics & Medical
Tiv thaiv kev lag luam servers, ntsuas ntsuas, thiab cov cuab yeej kho mob raws li kev ua haujlwm siab -loading rau Brass End Caps.
Cov lus nug nquag
Q: Yuav ua li cas koj cov nyiaj / tin electroplating txheej txheem kom tsis txhob muaj kev sib cuag thiab tiv thaiv oxidation ntawm tooj dag fuse cap?
A: Peb siv ib qho hauv qab - phaj npib tsib xee barrier (2-3 μm) ua raws li qhov tseeb nyiaj los yog tin plating. Cov txheej txheem ob txheej txheej no tiv thaiv zinc tsiv teb tsaws los ntawm tooj dag substrate, khaws kev tiv thaiv qis dua 0.8 mΩ thiab tiv thaiv oxidation nyob rau hauv siab - qhov kub thiab txias.
Q: Koj puas tuaj yeem tsim kev caiBrass End Capsnrog sib sib zog nqus nqus nta thiab nruj phab ntsa thickness kam rau ua?
A: Yog. Siv ntau-chaw nres tsheb sib sib zog nqus nqus cov xovxwm thiab WAIDA PG- cov cuab yeej ua tiav, peb tuav cov phab ntsa tuab tsis pub dhau ± 0.01mm ntawm qhov sib sib zog nqus- kos tooj dag sab hauv lub hau, tshem tawm cov kev ntxhov siab thaum lub sij hawm siab - ceev automated los ua ke.
Q: Cov ntaub ntawv tswj xyuas zoo dab tsi koj muab rau kev cai OEM tooj dag hau xaj raws li IATF 16949?
A: Txhua qhov ntau lawm suav nrog Daim Ntawv Pov Thawj Zeb, XRF Plating Thickness Report, CMM Dimensional Inspection Data, Salt Spray Test Results, thiab tag nrho PPAP Theem 3 cov ntaub ntawv raws li kev thov kom tiav cov saw hlau traceability.
Tiv tauj peb
Xa peb koj 2D / 3D CAD kos duab (STEP / DWG) lossis cov lus qhia hluav taws xob rau kev tshuaj xyuas DFM sai thiab lub Hoobkas- nqe lus ncaj qha hauv 24 teev.
