Hauv -Daim Ntawv Qhia Qhov tob rau Copper Bus Bar Tapped Technology: Manufacturing, Applications

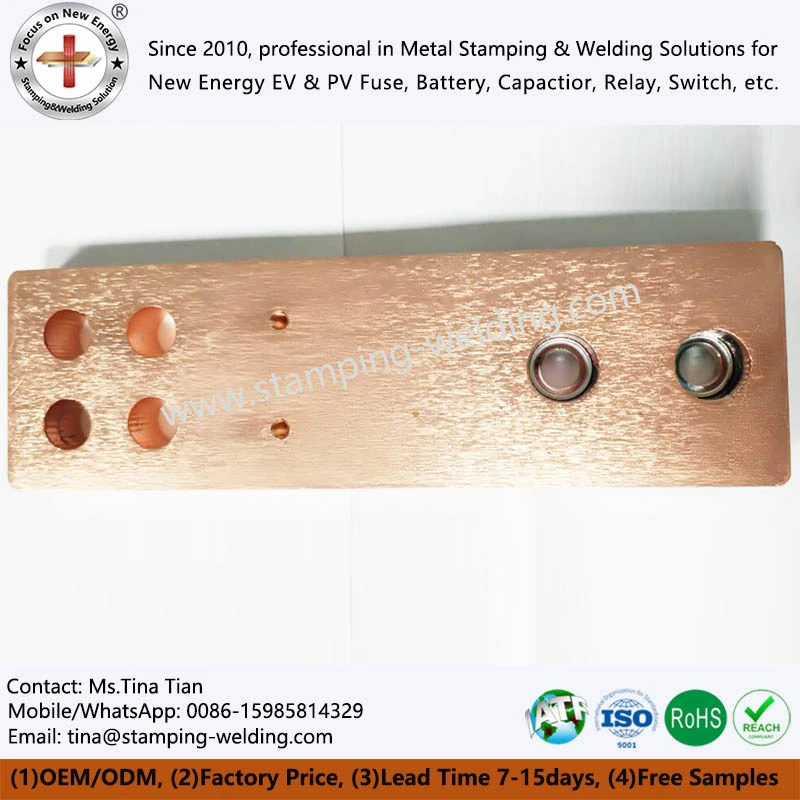

A Copper Bus Bar Tapped (tapped copper bus bar) yog hais txog tus neeg xyuas pib tooj liab (bus bar) uas tau raug machined los yog drilled los tsim kais -tawm cov ntsiab lus rau branching circuits los yog kev sib txuas. Cov kais no - tawm tso cai ruaj khov, qis - impedance kev sib txuas los ntawm lub cev lub zog loj rau ntau lub voj voog. Kev siv siab -purity tooj liab kom ntseeg tau tias muaj hluav taws xob zoo thiab thermal conductivity, thaum lub tapping tsim maximizes yooj nyob rau hauv lub hwj chim faib.





Kev xaiv khoom

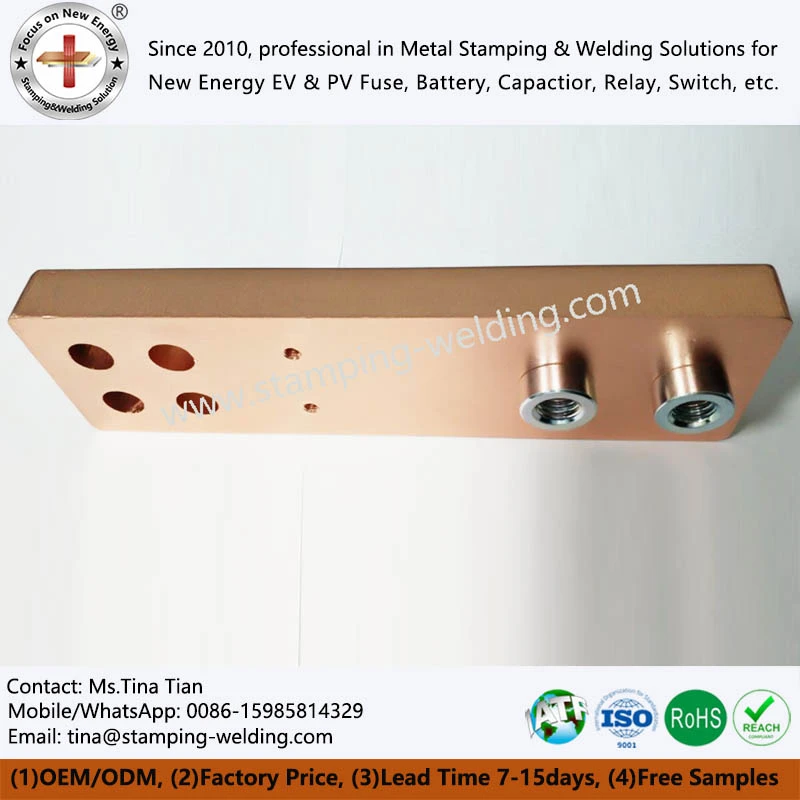

• Cov khoom siv hauv paus rau Grounding Copper Busbar feem ntau yog siab -purity electrolytic tooj liab, xws li C11000, uas muab kev ua tau zoo heev thiab lub zog txhua yam.
• Qee cov qauv siv txawm tias siv oxygen- tooj liab dawb (piv txwv li, OFHC) rau cov ntawv thov uas xav tau ultra- siab conductivity.

Txheej thiab Bonding

• Qee zaum, cov txheej txheem laminated yog siv: cov nplooj ntawv tooj liab thiab cov txheej txheem insulating yog stacked thiab diffusion-bonded nyob rau hauv tshav kub thiab siab los ua ib tug khoom, multi- txheej tsheb npav bar.
• Cov txheej txheem no pab lub Fais Fab Distribution Bus Bar tuav cov qauv kev ncaj ncees txawm tias nyob rau hauv cov khoom siv tam sim no.

Precision Machining

• CNC tshuab ua tau raug txiav, drilling, thiab tapping rau tsim kais -tawm cov ntsiab lus ntawm Backplane Bus Bar.
• Lub qhov tolerances, xov qhov tob, thiab kev sib dhos yuav tsum tau nruj nruj tswj xyuas kom ntseeg tau tias kev sib cuag hluav taws xob.

Kev tsim thiab ua tiav

• Tom qab machining, cov tsheb npav tuaj yeem khoov los yog zoo li tus kom haum rau kev tsim qauv.
• Kev kho deg - xws li tin plating, nyiaj plating, los yog tooj liab liab - yog siv rau tooj liab grounding bus bar los txhim kho corrosion kuj, tiv tauj kev ua tau zoo, thiab kev ua haujlwm ntev.
• Rwb thaiv tsev tuaj yeem ntxiv los ntawm txoj hauv kev xws li cua sov-shrink tubing, PVC tes tsho, lossis epoxy txheej.

Kev Tswj Xyuas Zoo

• Txhua qhov Grounding Bar Holes tau kuaj xyuas nruj: kev coj ua (feem ntau dhau ntawm plaub- kev sojntsuam ntsuas), qhov tseeb qhov tseeb, txhua yam muaj zog, thiab kev ua tiav tag nrho yog qhov tseeb.
• Tag nrho cov txheej txheem tsim khoom ua raws li cov qauv thoob ntiaj teb lossis lub teb chaws, xws li IEC, IEC / IEEE, lossis cov qauv siv tooj liab cuam tshuam.





Fais fab Distribution Systems

• Nyob rau hauv switchgear, faib boards, thiab tswj vaj huam sib luag, tooj liab hauv av Bus Bar yog siv los ua lub ntsiab lub cev rau ceg tawm ntau circuits. Nws cov ntsiab lus tapped yooj yim xaim thiab txhim kho modularity.

Renewable Energy & Energy Storage

• Rau hnub ci inverters, roj teeb lub zog khaws cia, thiab lub tsheb hluav taws xob (EV) roj teeb pob, tin plated tooj liab hauv av bar tsim tso cai rau kev sib txuas ntawm lub tsheb loj mus rau ib tus neeg modules.
• Tus qauv tapped enables ntau compact layouts thiab qis impedance txoj kev, boosting system efficiency.

Data Centers thiab Critical Power Infrastructure

• Hauv PDUs (Power Distribution Units), UPS systems, thiab siab -cov neeg rau zaub mov racks, hauv av tsheb npav hluav taws xob vaj huam sib luag pab faib hluav taws xob muaj kev ntseeg siab nrog kev rov ua dua siab dua thiab qis qis qis.
• Qhov yooj yim ntawm kais -offs txhawb kev scaling yav tom ntej los yog reconfiguration.

Muaj Machinery & High - Cov Khoom Siv Hluav Taws Xob

• Hauv cov chaw tswj hwm lub cev muaj zog (MCC), cov tshuab hloov pauv loj, thiab hnyav- lub luag haujlwm hloov pauv, Grounding Copper Busbar yog siv los xa cov tam sim no mus rau sub- units lossis lwm qhov hluav taws xob.
• Nyob rau hauv ib puag ncig hnyav xws li electrolytic lossis metallurgical nroj tsuag, cov tsheb npav tapping no kuj tseem tuaj yeem ua ke nrog cov tshuab cua txias (piv txwv li, dej-txias) rau thermal stability.





Qhov zoo

Cov khoom siv hluav taws xob zoo heev:Lub siab -purity tooj liab siv nyob rau hauv Fais Fais Distribution Bus Bar muab kev poob qis heev thiab siab ampacity.

Flexible Circuit Design:Nrog precision -machined kais-offs, nws yooj yim dua rau ceg circuits lossis modules yam tsis muaj kev sib txuas ntxiv.

Superior Thermal Management:Copper lub thermal conductivity pab dissipate tshav kub zoo nyob rau hauv siab - daim ntawv thov tam sim no.

Robust Reliability:Nto plating thiab rwb thaiv tsev txhim khu kev ruaj ntseg thiab tiv thaiv Backplane Bus Bar los ntawm ib puag ncig degradation.



Kev sib tw

Cov khoom siv siab dua:Cov tooj liab ntshiab yog kim dua li lwm yam xws li txhuas, uas tuaj yeem ua rau tus nqi ntawm tooj liab grounding bus bar.

Manufacturing Complexity:Drilling, threading, thiab precision machining ntawm kais cov ntsiab lus ntawm Grounding Bar Holes yuav tsum tau cov cuab yeej CNC siab heev thiab cov neeg txawj ua haujlwm.

Qhov hnyav:Tooj liab kuj hnyav heev, uas tej zaum yuav muaj teeb meem kev teeb tsa lossis kev teeb tsa hauv qhov hnyav -sensitive designs.

Rwb thaiv tsev thiab kev nyab xeeb:Kev sib ntxiv ntawm cov rwb thaiv tsev thiab plating yuav tsum tau ua tib zoo tsim kom muaj kev nyab xeeb, tshwj xeeb tshaj yog nyob rau hauv kev tsim cov tapping uas raug cov ntsiab lus sib txuas yuav ua rau muaj kev pheej hmoo.




Copper Bus Bar Tappedyog ib qho tshwj xeeb thiab technically advanced tov rau niaj hnub fais fab kev faib tshuab. Los ntawm kev sib txuas ntawm tooj liab qhov zoo tshaj plaws hluav taws xob thiab thermal kev ua tau zoo nrog precision-machined kais- tawm cov ntsiab lus, qhov kev tsim no muaj kev ua haujlwm siab thiab kev sib txuas yooj yim. Txawm hais tias cov khoom siv ntau dua thiab xav tau kev tsim khoom, nws qhov zoo ntawm kev ntseeg siab, kev hloov pauv, thiab kev ua haujlwm ua rau nws muaj kev xaiv zoo hauv kev lag luam xws li cov chaw zov me nyuam, lub zog tauj dua tshiab, hluav taws xob tsheb, thiab cov tshuab hluav taws xob muaj zog. Raws li kev tsim cov thev naus laus zis thiab cov khoom siv tshawb fawb txuas ntxiv mus, lub luag haujlwm ntawm Copper av Bus Bar tau npaj kom loj hlob ntau lub hauv paus rau yav tom ntej ntawm siab - tam sim no hluav taws xob infrastructure.
